Lower Spine Acceleration
Overview

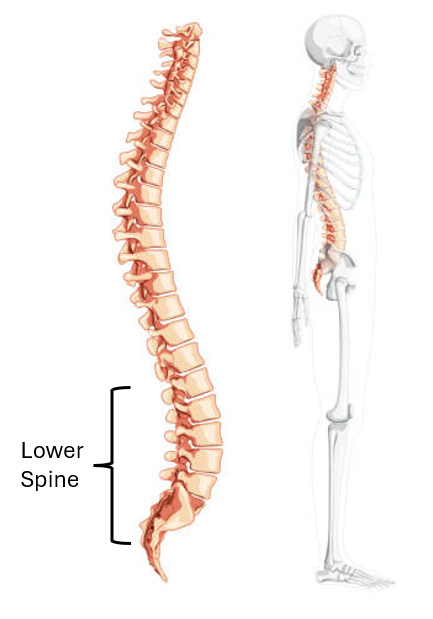

The lower spine refers to the region of the spine around the lumbar vertebrae, typically extending from the lumbar vertebrae down to the sacrum and pelvis [1]. In car crash scenarios, the lower spine may undergo significant acceleration, which can lead to spinal injuries such as fractures, sprains, or more severe damage to the spinal cord [2]. Additionally, if an Injury Assessment Reference Value (IARV) is associated with the ATD used in the selected load test, the calculated maximum lower spine acceleration will be reported as a percentage of the IARV [3]. The IARV is a threshold value used to assess injury risk during an impact. Each ATD has its own IARV, which varies depending on the type, sex, and size of the dummy [3].
Required Signals
- Acceleration at the Lower Spine (Y)
Calculation
- Convert the lower spine acceleration to gravity (g) (if applicable)
- Filter the acceleration signal (CFC = 180)
- Truncate acceleration signal to start at 0 seconds (if applicable)
- Calculate the maximum filtered acceleration value over a 3 millisecond window
- 3 millisecond window is used to better detect the rapid changes in acceleration
- Calculates the percent of the IARV threshold that the maximum filtered acceleration value reaches
Lower Spine Acceleration IARV Table [4]
| ATD | IARV (gravity) |
|---|---|
| HIII – 3yo | 92 |
| HIII – 6yo | 60 |
| HIII – 10yo | 82 |
| HIII – F05 | 60 |
| HIII – M50 | 60 |
| HIII – M95 | 54 |
| BioSID | 60 |
| EuroSID (ES-2re) | 82 |
