Load Cell Analysis

Overview

Load cell walls are utilized in New Car Assessment Program (NCAP) crash tests to assess a vehicle’s crashworthiness by measuring the forces exerted on a rigid barrier during impact (see Figures 1 and 2) [1]. These walls are equipped with sensors that capture detailed force data during a collision. The configuration of load cell walls can vary depending on the objectives of the test, the type of crash being simulated, and the organization conducting the assessment (see Figures 3 through 7).

Figure 1: Load Cell Wall Side View	Figure 2: Load Cell Wall Front View

Load Cell Wall Configurations

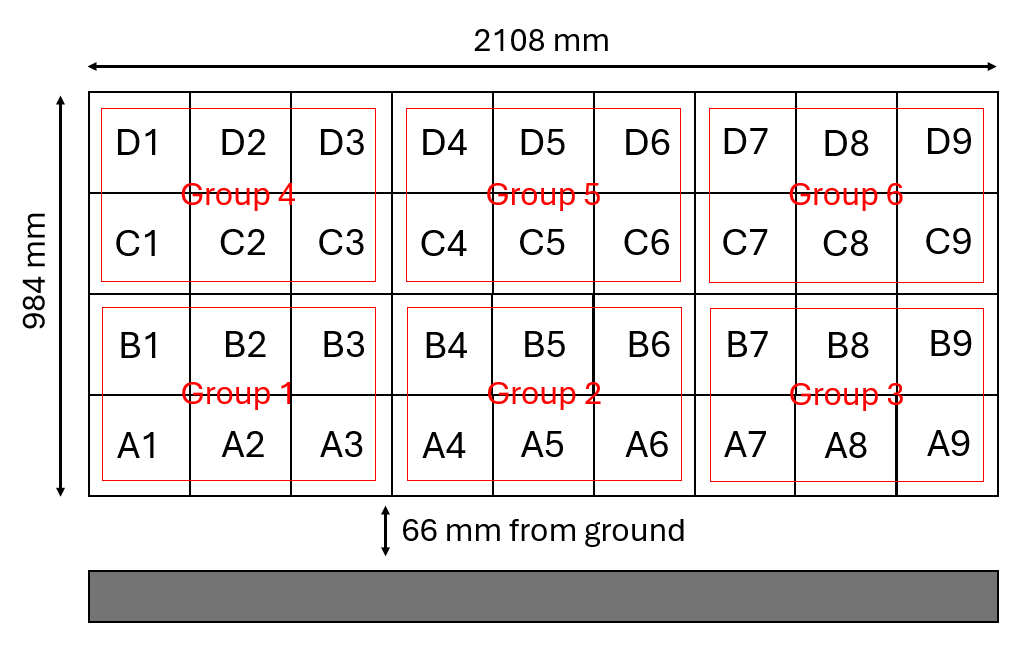

Figure 3: Low Resolution 4x9 load cell wall

The low-resolution 4×9 load cell wall is commonly used by the Transportation Research Center for preliminary, frontal impact, or side impact crash testing [3][4]. These walls are comprised of 36 force measuring load cells, positioned in 4 rows with 6 groupings of 9 cells, used to measure axial forces [3] [4]. They are positioned 66 mm above the ground [3]. These walls are usually used in less detailed tests where the primary goal is to understand the general force distribution of a crash test over a large area rather than having a high level of measurement precision [3] [4].

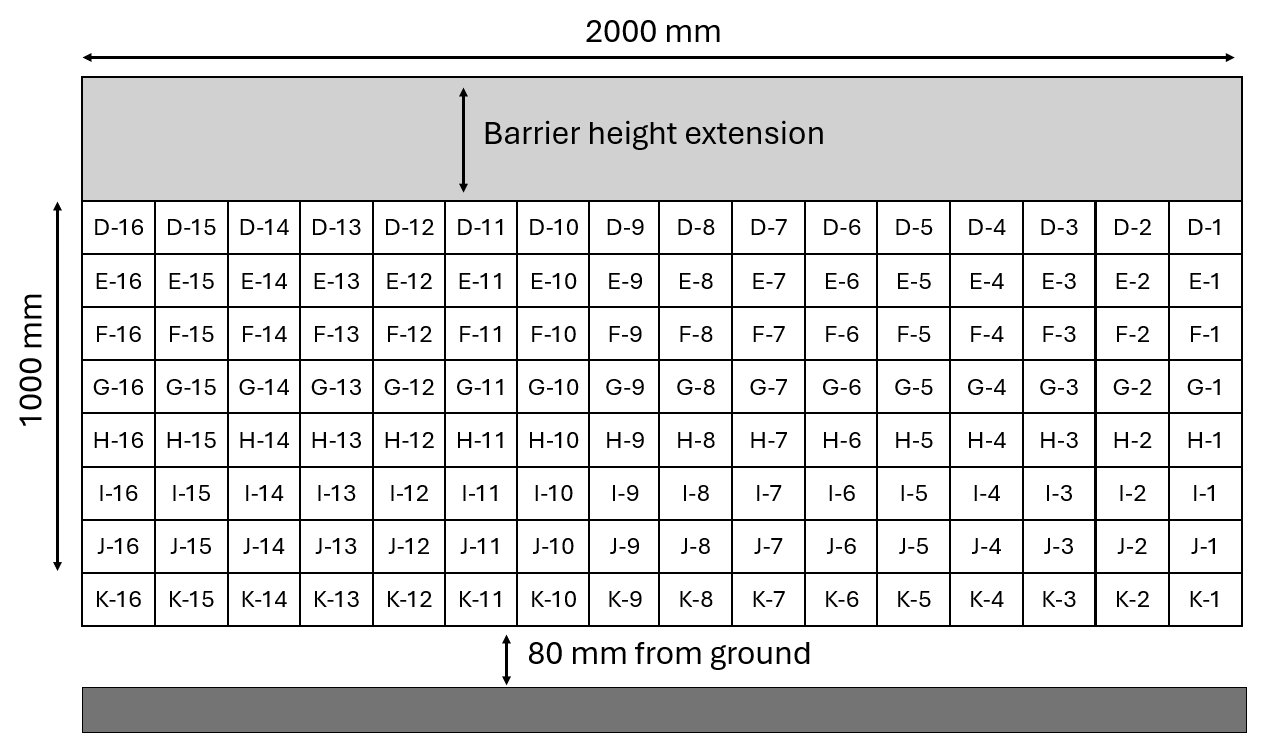

Figure 4: Calspan High Resolution 8x16 load cell wall

The high-resolution 8×16 load cell wall, equipped with an additional barrier height extension, is used by Calspan for advanced crash testing scenarios [5]. This configuration consists of 128 load cells arranged to provide detailed force measurements, with the height extension mounted at the top of the wall to increase the vertical measurement range. This feature is particularly beneficial for evaluating vehicles with taller front-end profiles that may impact the barrier at a greater height [3][5]. These walls are positioned 80 mm above the ground [3].

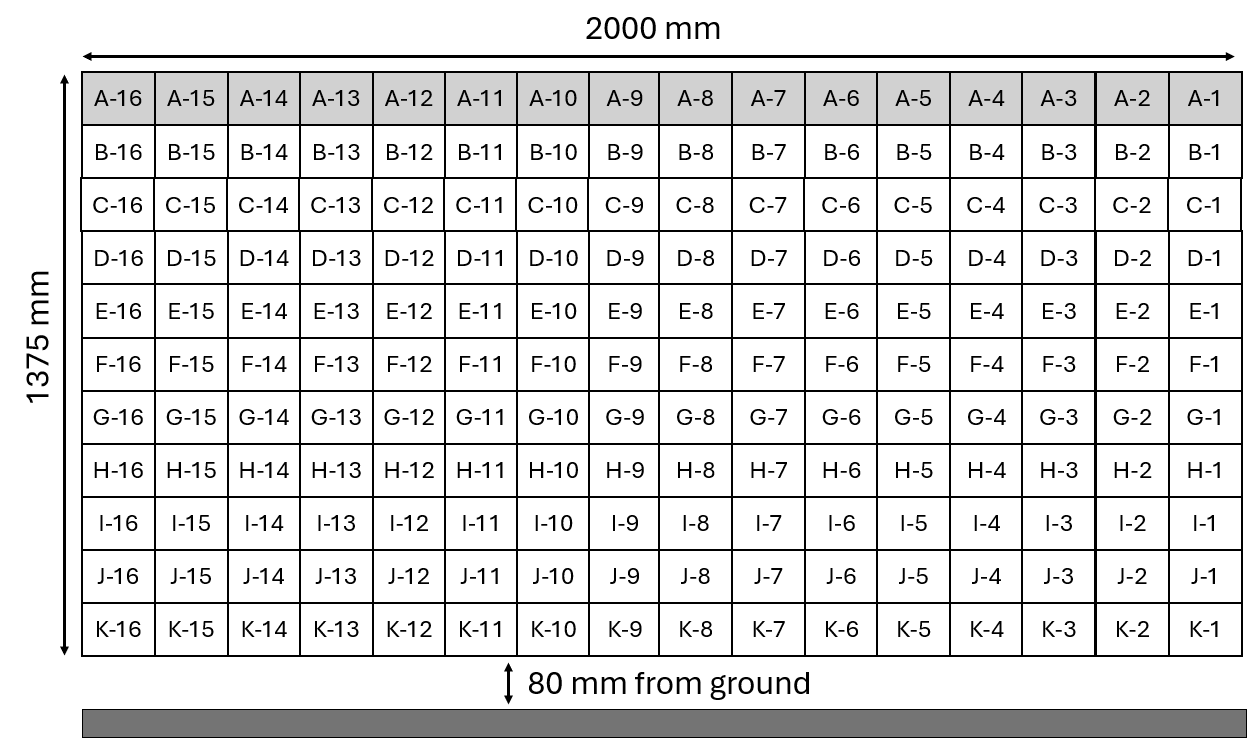

Figure 5: Idiada/Karco High Resolution 11x16 load cell wall

The high-resolution 11×16 load cell wall, used by Applus+ Idiada Karco Engineering LLC, is employed in various crash tests [3]. This configuration consists of 176 force-measuring load cells arranged in 11 rows of 16 cells, designed to measure axial forces during impact. The increased resolution of this setup allows for a more detailed mapping of impact forces, which can be beneficial for understanding how specific parts of the vehicle respond to the crash. This level of detail is particularly useful in complex scenarios, such as when the vehicle impacts the wall at an angle [3]. These walls are positioned 80 mm above the ground [3].

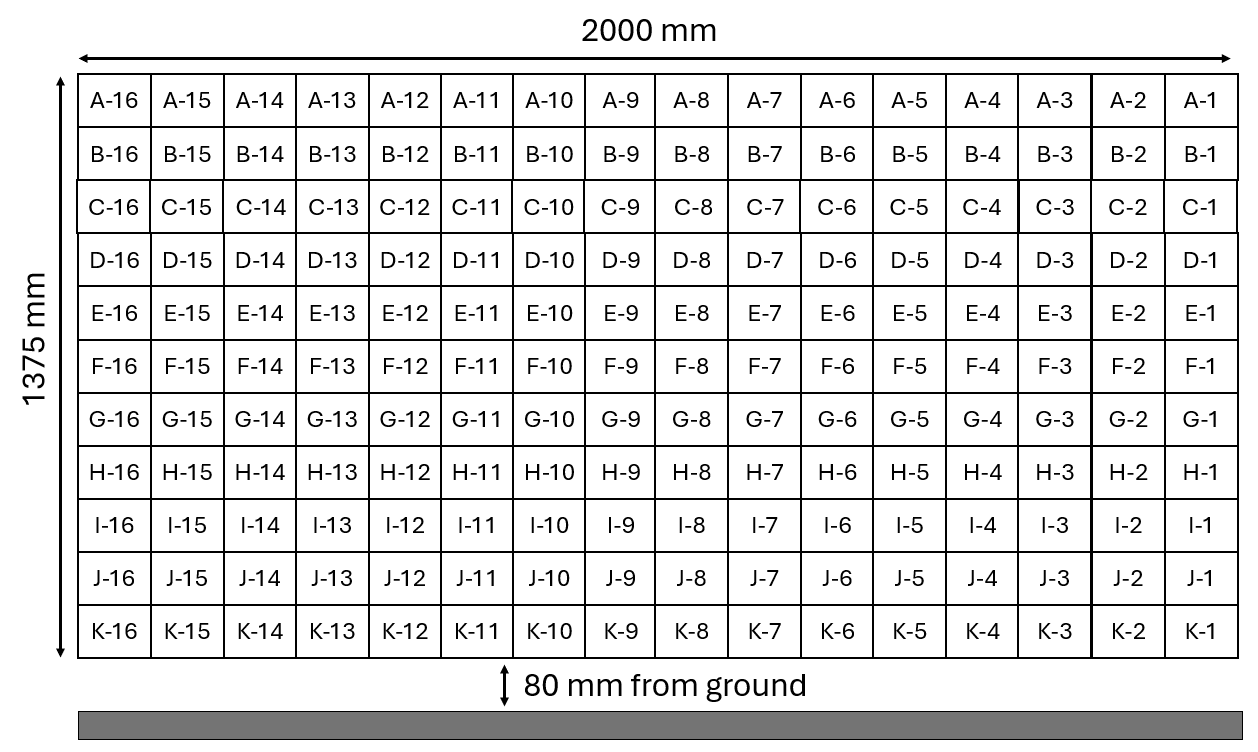

Figure 6: TRC High Resolution 11x16 load cell wall

The high-resolution 11×16 load cell wall, used by the Transportation Research Center, is designed for a variety of crash tests [3]. This configuration consists of 176 force-measuring load cells arranged in 11 rows of 16 cells, enabling the measurement of axial forces during impact. The increased density of this setup provides a more detailed mapping of impact forces, which can be particularly useful for understanding how different parts of the vehicle respond to the crash. This level of detail is especially valuable in complex scenarios, such as when the vehicle impacts the wall at an angle [3]. These walls are positioned 80 mm above the ground [3].

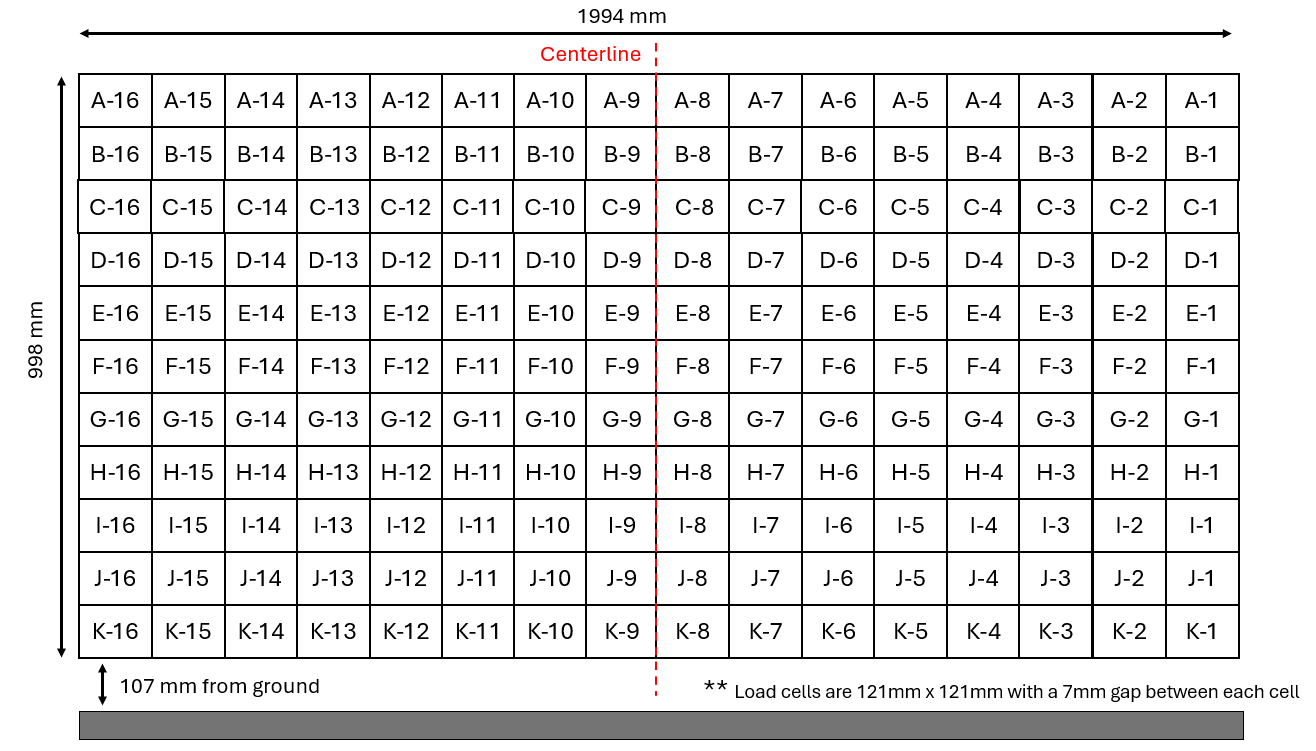

Figure 7: MGA High Resolution 11x16 load cell wall

The high-resolution 11×16 load cell wall, used by MGA Research Corporation, is employed in a variety of crash tests [6]. This configuration consists of 176 force-measuring load cells arranged in 11 rows of 16 cells, designed to measure axial forces during impact. The increased resolution of this setup allows for a more detailed mapping of impact forces, which is beneficial for understanding how specific parts of the vehicle respond to the crash. This level of detail is especially valuable in complex scenarios, such as when the vehicle impacts the wall at an angle [3][6]. These walls are positioned 107 mm above the ground [3].

Inputs

• Desired load test to evaluate
  • The load test already includes the test performer used, load cell wall dimensions (height and length), and height above ground

Calculation

1. Creates a matrix of filtered load cell force values and orients the matrix to match how the test performer views the barrier
2. Converts the force values to Newtons and finds the peak force for each load cell
3. Calculates the sum of all forces across all the load cells
4. Creates graph of force (N) vs time of summed forces across all load cells
5. Calculates the sum of all forces across each column
6. Creates graph of force (N) vs time across each load cell row with all forces filtered at CFC = 60
7. Calculates the sum of all forces across each row
8. Creates graph of force (N) vs time across each load cell row
9. Finds the peak force values at each load cell
10. Creates heat map to display peak force values across the load cell wall
11. Calculates the impulse for each load cell by integrating the force signal over the corresponding time (Equation 1)

$$Impulse\,(t) = \int_{t_{inital}}^{t_{final}} force(t)dt \quad (\text{Equation 1})$$

12. Finds the peak impulse value across all load cells
13. Calculates the instantaneous Height of Force (HOF), the vertical location from the ground where the resultant crash force acts on the wall (Equation 2)

$$HOF\,(t) = \frac{\sum (F_{loadcell}(t) \cdot H_{loadcell}(t))}{\sum F_{loadcell}(t)} \quad (\text{Equation 2})$$

Where ${F_{loadcell}}$ is the force at time t from a specific load cell, and ${H_{loadcell}(t)}$ is the vertical position of that load cell above ground.

14. Truncates the force and HOF signals to the time interval during which total barrier force exceeds 50,000 N. This excludes any low-force or noise regions.
15. Calculates the displacement weighted Averaged Height of Force between the first 25 to 400 mm of vehicle intrusion (AHOF400) using trapezoidal integration (Equation 3)

$$\text{AHOF}_{400} = \frac{\int_{25}^{400} \text{HOF}(d) \cdot F(d) \, dd}{\int_{25}^{400} F(d) \, dd} \quad \text{(Equation 3)}$$

Where ${HOF(d)}$ is the height of force at displacement d, and ${F_{loadcell}}$ is the corresponding total force.

16. Calculates the standard deviation of AHOF400 (Equation 4) using a force weighted variance formula

$$\sigma = \sqrt{\frac{ \int (HOF(d) - AHOF(d))^2 \cdot F(d) \ }{ \int F(d) \ }} \quad (\text{Equation 4})$$

This measures the spread of height-of-force values around the weighted average, emphasizing displacement regions with higher force.

17. Calculates the initial stiffness of the vehicle's face making contact with the loadcell wall using raw displacement and force data

    17a. Truncates the displacement data to only include region where data is monotonically increasing, starting within the first 200 mm of the curve

    17b. Resamples displacement data at 1 mm increments; resampled data must be greater than 150 increments

    17c. Creates a fit line from the resampled data using a least squares method (Equation 5a and 5b)

    17d. Calculates the R² value, this value must exceed 0.95 (Equation 5c)

$$Slope = \frac{ n * \sum Force - \sum Displacement * \sum Force}{ n * \sum (Displacement)^2 - (\sum Displacement)^2} \quad (\text{Equation 5a})$$ $$Intercept = \frac{\sum Force - Slope * \sum Displacement}{{n}} \quad (\text{Equation 5b})$$

Where ${n}$ is the number of resampled data points, ${\sum Displacement}$ is the sum of displacement values, and ${\sum Displacement}$ is the sum of force values.

$$R² = (\frac{ n * \sum (Force * Displacement) - \sum Displacement * \sum Force}{\sqrt([n * \sum (Force^2) - (\sum Force)^2] * [n * \sum (Displacement^2) - (\sum Displacement)^2])})^2 \quad (\text{Equation 5c})$$

18. Calculates the KW400 stiffness which represents the work required to crush 400 mm of a vehicle's front end

    18a. Calculates work by integrating the force-displacement curve using the trapezoidal rule from 25 mm to 400 mm of vehicle displacement (Equation 6a)

    18b. Calculates the Kw400 stiffness using the work calculated in step 18a and the displacement limits (Equation 6b)

    18c. Converts the Kw400 stiffness units to Newtons per millimeters

$$\text{Work} = {\int_{25}^{400} Force(d)\, dd} \quad (\text{Equation 6a})$$

Where ${d}$ represents displacement

$$Kw\,400 = \frac{\ 2 * Work}{{400^2 - 25^2}} \quad (\text{Equation 6b})$$

19. Creates heatmap to display peak impulse values across the load cell wall
20. Generates a series of graphs that illustrate different vehicle metrics. Each metric below is measured from the left and right side of the vehicle, but the type of impact test will determine the specific vehicle location where the metric is measured from. Below are the output vehicle metric graphs:
    • Creates graph of Vehicle Acceleration (g) vs Time measured from either side of the vehicle
    • Creates graph of Vehicle Velocity (kph) vs Time measured from either side of the vehicle
    • Creates graph of Vehicle Displacement (mm) vs Time measured from either side of the vehicle
    • Creates graph of Vehicle Energy (J) vs Time measured from either side of the vehicle
      • Kinetic Energy (Equation 7a), Total Energy (Equation 7b), and Work (Equation 7c) are displayed on the vehicle energy graph
    • Creates graph of Barrier Force (N) vs Displacement (mm) measured from either side of the vehicle
    • Creates graph of Height of Force (mm) vs Time (s) with the calculated AHOF400 value

$$Kinetic\,Energy = \frac{1}{2} \cdot \text{mass} \cdot \left( \text{velocity}(t) \right)^2 \quad (\text{Equation 7a})$$ $$Total\,Energy = \frac{1}{2} \cdot \text{mass} \cdot \left( \text{velocity}(t) \right)^2 \quad (\text{Equation 7b})$$ $$Work = \int_{x_{inital}}^{x_{final}} force(x)dx \quad (\text{Equation 7c})$$

Where ${x}$ represents distance

References

[1] K. Digges and A. Eigen."Measurements of Stiffness and Geometric Compatibility in Front to Side Crashes," The National Crash Analysis Center, George Washington University, Paper #349

[2] Takizawa, Higuchi, Iwabe, Kisai, Suzuki. "Study of Load Cell MDB Crash Tests for Evaluation of Frontal Impact Compatibility," Honda R&D Co., PSG CO., Paper #05-0235

[3] M. Jerinsky and W. Hollowell. "NHTSA's Review of High-Resolution Load Cell Walls' Role in Designing for Compatibility," National Highway Traffic Safety Administration, USA, Paper #393

[4] M. Herinksy and W. Hollowell. "NHTSA's Review of Vehicle Compatibility Performance Metric Through Computer Simulation." National Highway Traffic Safety Administration, Washington, D.C., IMECE2003-44045

[5] "2021 Nissan Versa 4-Door Sedan, Final Report," National Highway Traffic Safety Administration Office of Crashworthiness Standards, March 5th 2021, Report Number: NCA-KAR-21-007

[6] "2020 Subaru Outback 5-Door MPV, Final Report," National Highway Traffic Safety Administration Office Office of Crashworthiness Standards, December 26, 2019, Report Number: NCAP-KAR-20-2005
